Weighing Module BS-M25DCapacity: 1,500 kg.
Product Overview

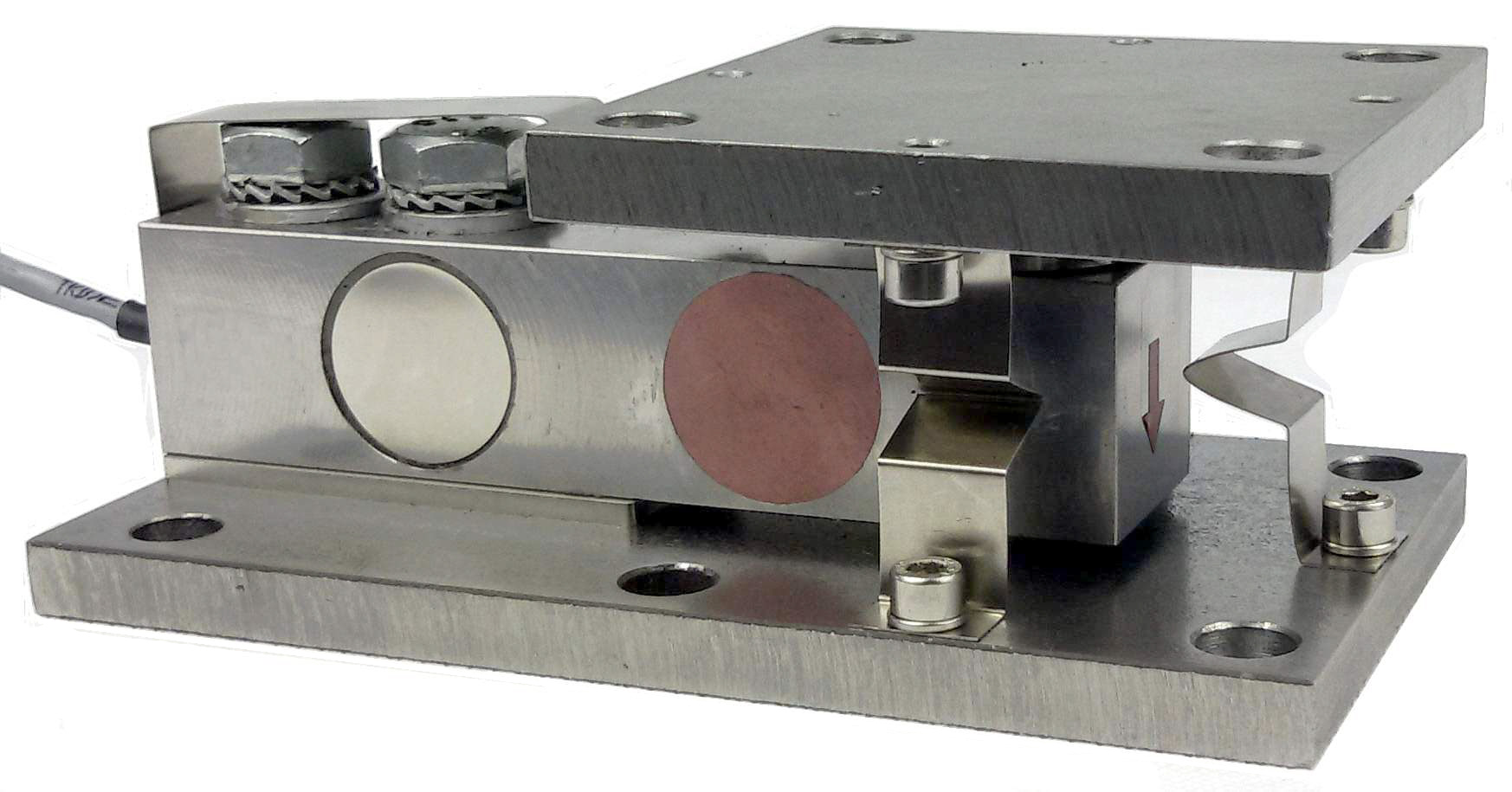

![BS-M25D](/images/products/WaMo_BS-M25D.jpg)
Attributes
- For Compression Load
- Parallel Connection possible
- Easy Mounting
- Environmental Protection IP 65
- Input Resistance 410 Ω ± 30 Ω
- Output Resistance 350 Ω ± 5 Ω
- Insulation Resistance > 3 GΩ
- Load Cell Body made of Stainless Steel (17-4PH)
- Other Parts made of Stainless Steel or Galvanised Steel
- Sensitivity 2.00 mV/V
- Accuracy Class 0.02 %
- Non-Linearity ≤ 0.02 %
- Zero Balance ≤ 1 %
- Safe Load Limit 150 %
- Breaking Load 300 %
- ATEX Operation with Safety Barriers
