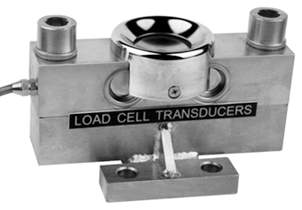

Compression Load Cell BQSACapacities: 10, 15, 20, 25, 30, 40 t.

Attributes

• For Compression Load
• Parallel Connection possible
• Easy Mounting
• Optional Accessories available
• Environmental Protection IP 68
• Input Resistance 750 Ω ± 50 Ω
• Output Resistance 703 Ω ± 5 Ω
• Insulation Resistance > 5 GΩ
• Load Cell Body made of Alloy Steel
• Sensitivity 2.00 mV/V
• Accuracy Class 0.02 %
• Non-Linearity ≤ 0.02 %
• Zero Balance ≤ 1 %
• Safe Load Limit 120 %
• Breaking Load 200 %
• ATEX Operation with Safety Barriers
